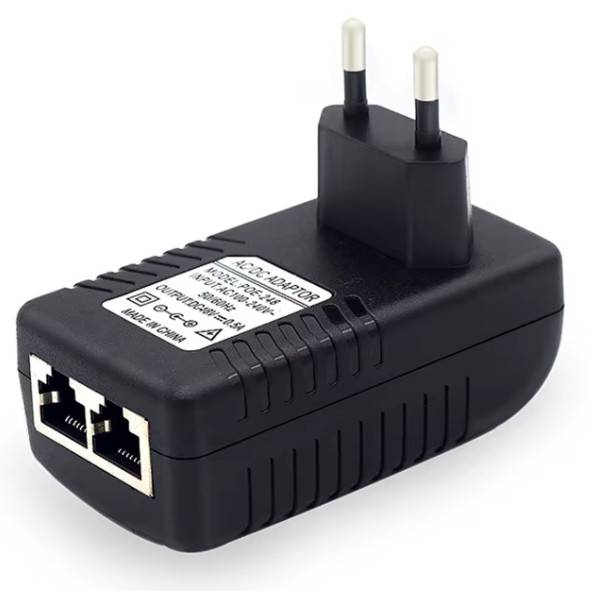

PoE Injector 100Mb - 48V Passive Power Injector for Ethernet Devices (EU / US / UK Versions)

The SMLIGHT PoE Injector 100Mb is a compact, wall-plug power injector designed to deliver 48V Passive PoE to Ethernet-powered devices over a standard RJ45 cable. It enables installers and integrators to power PoE-capable products such as SMHUB, SLZB adapters, network bridges, IP cameras, and other low-power PoE devices - without requiring a dedicated PoE switch.

Available with EU, US, and UK plugs, the injector accepts universal AC mains voltage and outputs 48V DC power combined with 10/100 Mbps data on the Ethernet line, enabling cable runs of up to 100 meters.

Product Highlights

• 48V Passive PoE output (pins 4-5 V+, pins 7-8 V-)
• Delivers up to 24W power (48V / 0.5A)
• Works with devices requiring ≤ 0.5A PoE input
• Two RJ45 ports : Data-in + Data/PoE-out
• Universal AC input: 100–240V, 50/60 Hz
• Over-voltage , short-circuit , and over-current protection
• Supports cable lengths up to 100 m
• Compact, wall-mount/plug-in design
• Available in EU / US / UK plug variants

Packaging

• Paper box

Packing content

• PoE Injector 100Mb - 1 pcs
