PoE Splitter 100Mb

PoE Splitter - IEEE 802.3af/at 100Mb 5V / 12V Power Output (MicroUSB, USB-C, DC Plug)

The SMLIGHT PoE Splitter converts standard IEEE 802.3af PoE (44–57V) into clean, stable low-voltage outputs for devices that do not support Power-over-Ethernet natively. It provides three output formats depending on the model - MicroUSB, USB-C, and DC barrel (5.5×2.1 mm) - making it suitable for powering smart-home devices, network gadgets, IoT modules, small embedded boards, and SMLIGHT products deployed in PoE-based environments.

The splitter passes through Ethernet data (100Mb) while isolating power safely. Automatic PoE negotiation ensures that connected switches recognize the splitter correctly before delivering power.

Product Highlights

• Converts IEEE 802.3af/at PoE (44–57V input) to 5V or 12V output
• Available in 5V, 12V-1A, and 12V-2A output variants
• Safe design with 2.5 kV isolation and auto-detection
• Supports passive and active PoE pinouts: 1/2 (+) & 3/6 (–), 4/5 (+) & 7/8 (–)
• Data passthrough (RJ45 male → device):
• 10/100 Mbps version

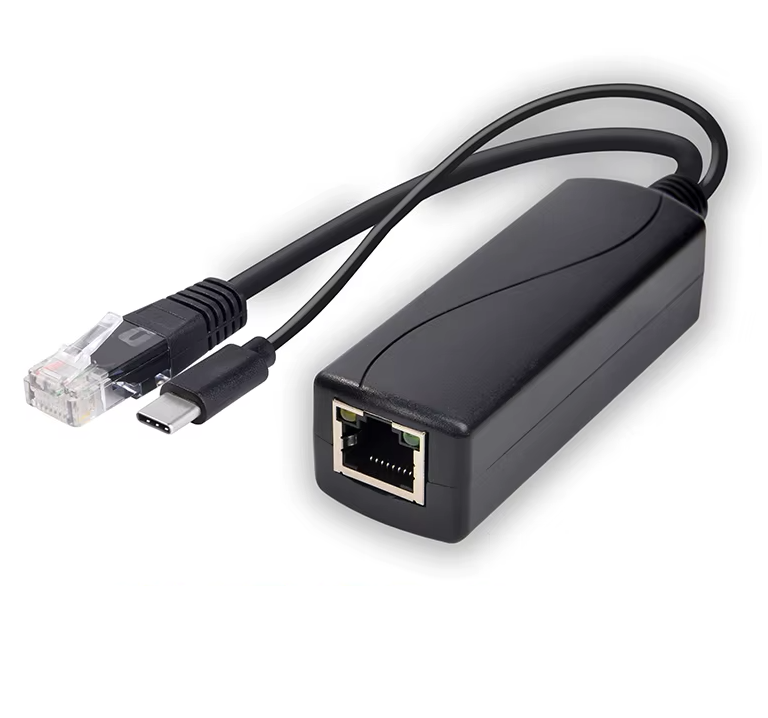

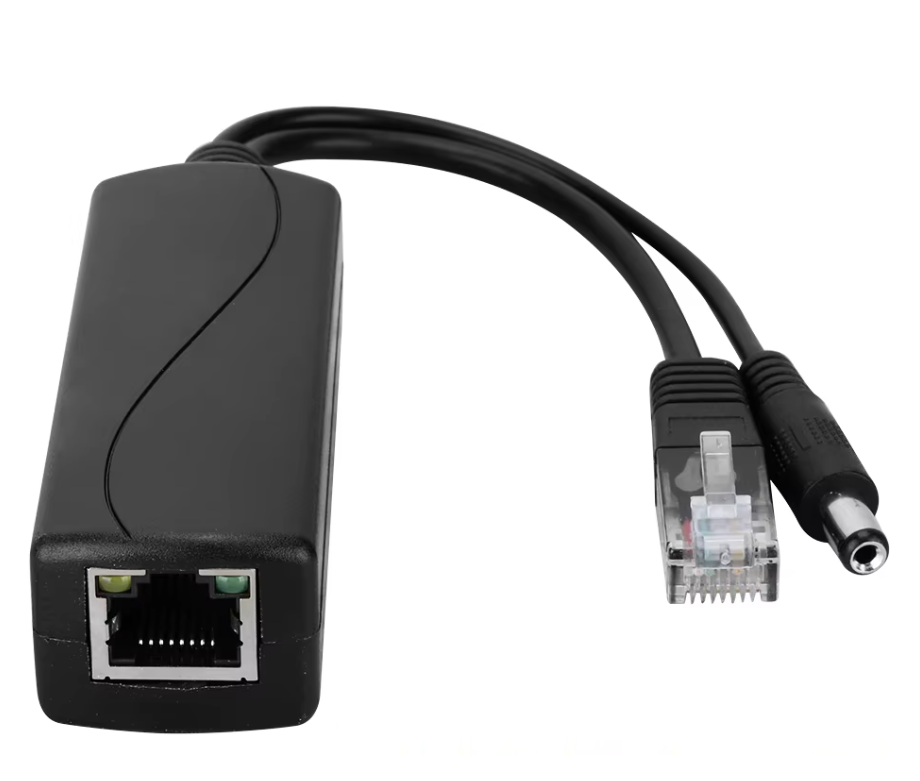

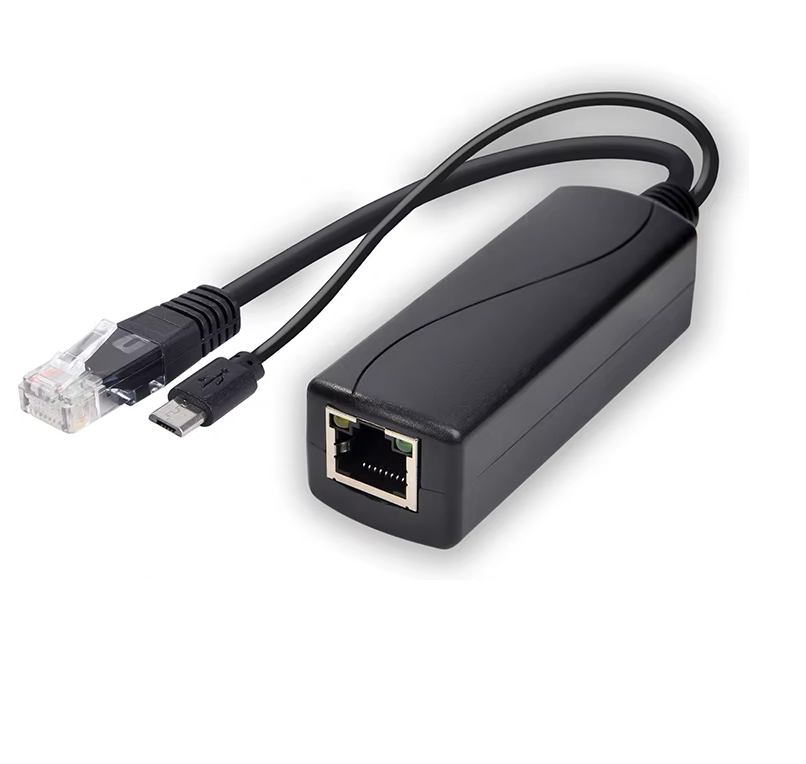

• Three output formats: MicroUSB, USB-C, 5.5×2.1 mm DC plug
• Compact, lightweight enclosure - ideal for mounting behind TVs, inside cabinets, or next to IoT devices

Packaging

• Antistatic protective bag

Packing content

• PoE Splitter - 1 pcs
