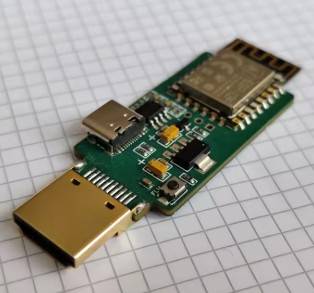

SLWF-08 - Wi-Fi HDMI-CEC Controller & LED Ambilight Module (ESPHome/Tasmota-Compatible)
The SMLIGHT SLWF-08 is a compact Wi-Fi hardware controller that allows smart-home systems to send and receive HDMI-CEC commands to compatible TVs, receivers, and media devices. Based on ESP8266, it integrates with ESPHome or Tasmota, enabling power control, input switching, volume adjustments, mute functions, and real-time status reporting - all directly within Home Assistant or other automation platforms.
Additionally, the SLWF-08 includes a dedicated level-shifted GPIO pin for WS2812B LED strips, enabling ambient backlighting behind a TV.
ATTENTION 1: HDMI-CEC compatibility is not guaranteed. Users must verify that their device supports CEC. ATTENTION 2: This is a development board with sample firmware. Users must flash ESPHome/Tasmota manually.
Product Highlights
- HDMI-CEC control (send commands + read device states)
- Works with ESPHome and Tasmota (CEC component)
- Special pin with level shifter for WS2812B LED strip control
- Based on ESP8266 (Wi-Fi 2.4 GHz)
- Onboard USB-UART (CH9102) for flashing via Type-C
- User button for boot/assignment
- DIY pinouts for advanced integrations (HDMI-CEC pin: GPIO14 WS2812B LED pin: GPIO12)
- Compact module for installers, developers, and smart-TV automation
HDMI-CEC Capabilities (via ESPHome/Tasmota)
- Power on/off
- Volume up/down, mute/unmute
- Active input selection
- CEC command passthrough
- Device state monitoring
- Support for advanced control depending on target device
- CEC settings reference: https://github.com/Palakis/esphome-native-hdmi-cec, https://github.com/johnboiles/esphome-hdmi-cec, Tasmota documentation: https://tasmota.github.io/docs/HDMI_CEC/
WS2812B Ambient Lighting
- Dedicated pin: GPIO12 with level shifter
- Supports WS2812B/WS2812X strips via ESPHome NeopixelBus
- Could run WLED firmware for ESP8266 builds
- Suitable for TV backlighting effects
- Antistatic protective bag
Packing content
