SLZB-07p7

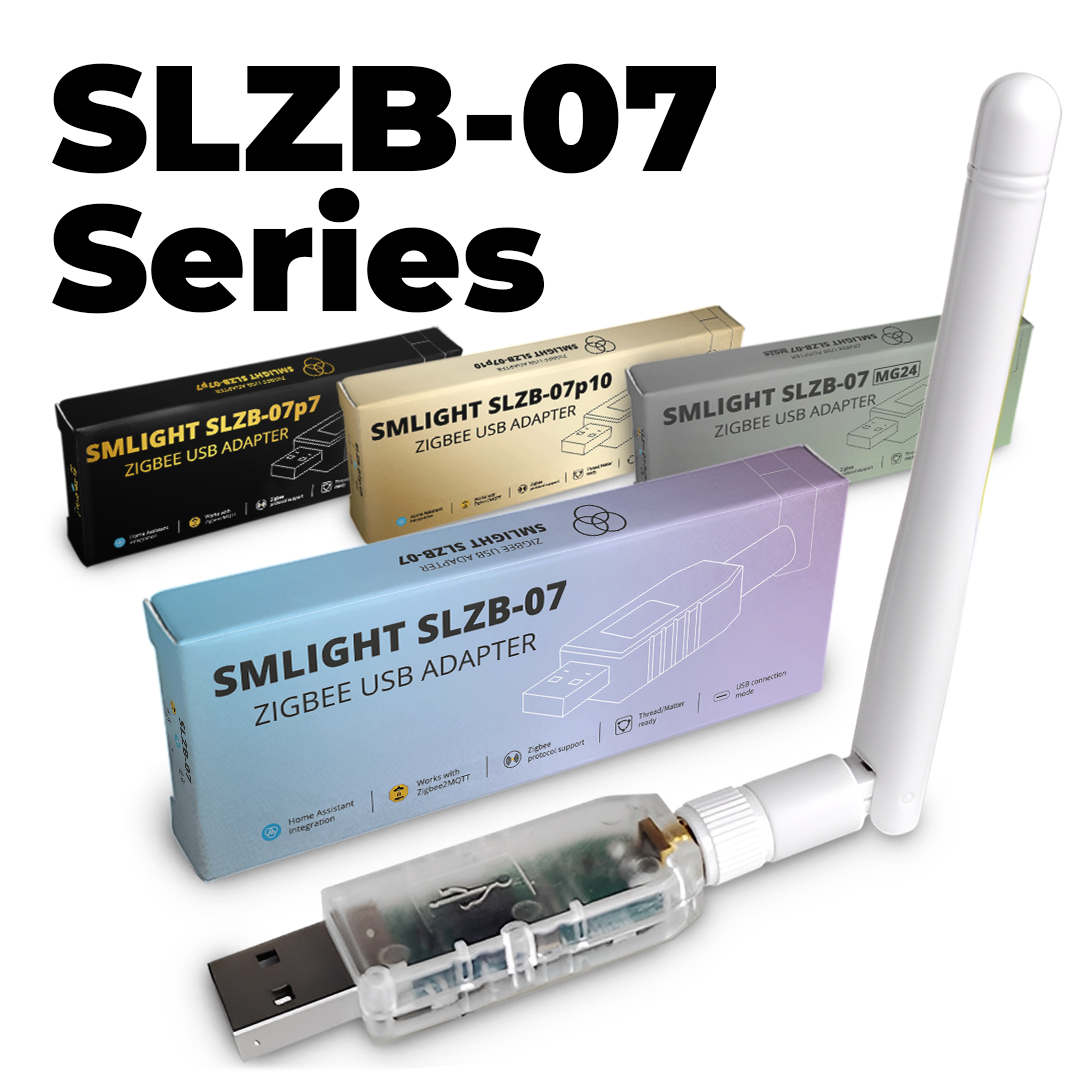

SLZB-07x series
72.00₾

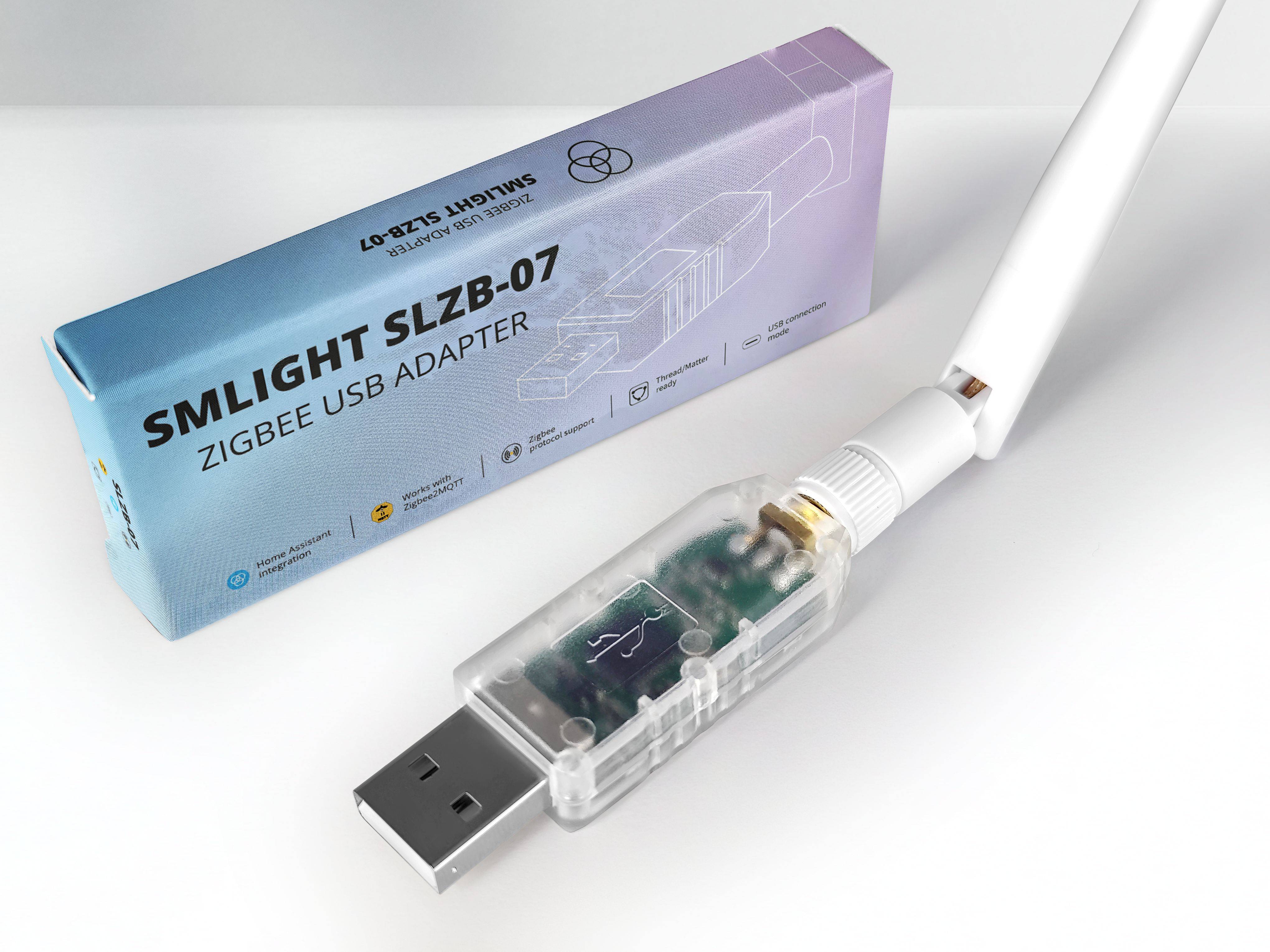

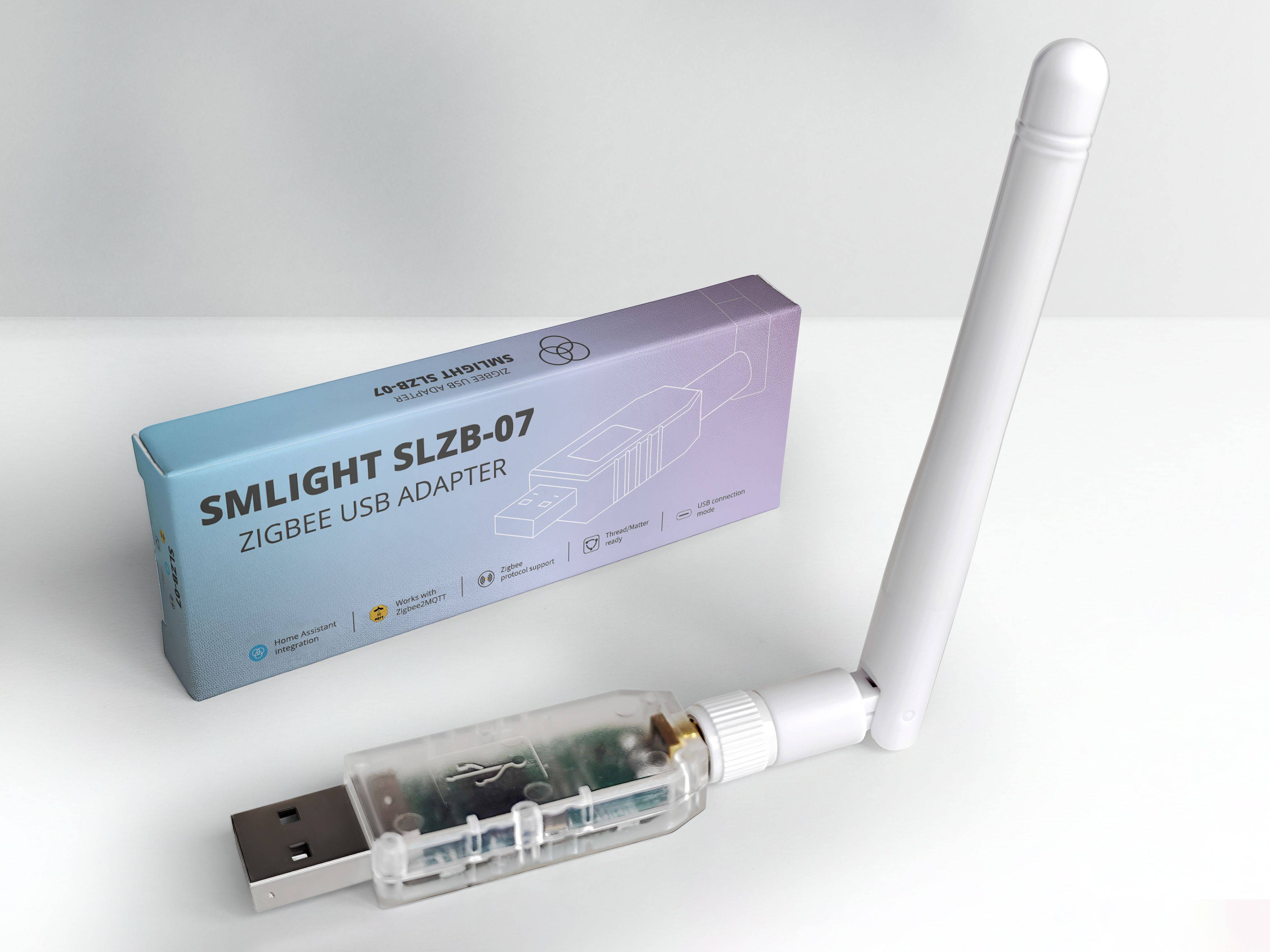

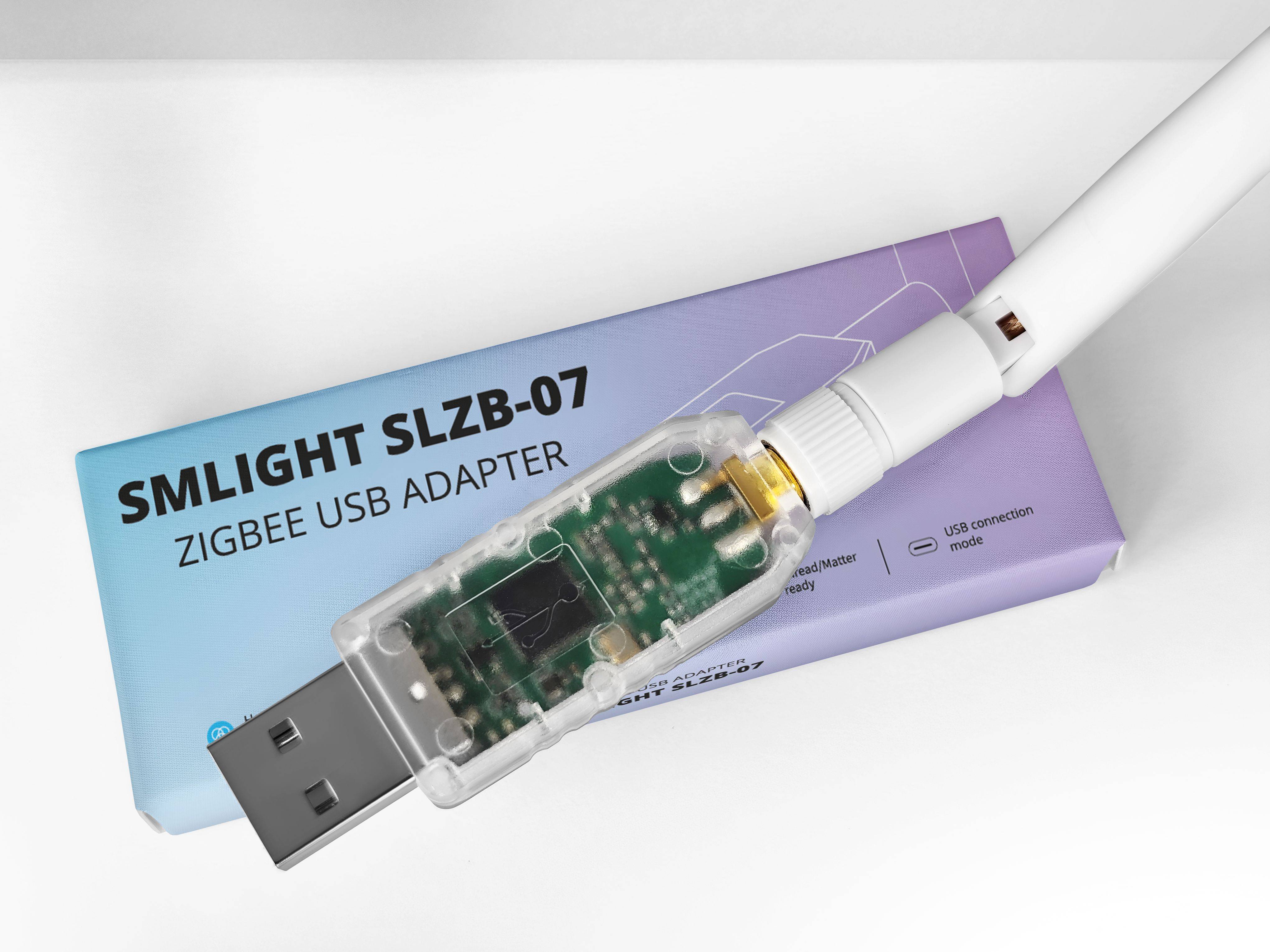

SLZB-07p7 USB Zigbee Coordinator / Router / Thread Border Router
The SLZB-07p7 is a compact USB Zigbee and Thread adapter for private users, system integrators, installers and OEM partners who need reliable wireless connectivity in a plug-and-play form factor. It is built on the Texas Instruments CC2652P7, an extended-range radio, and integrates with Zigbee2MQTT, ZHA/Home Assistant, OpenHAB, HomeSeer, ioBroker and more. It comes pre-flashed: plug it into a USB port and it works.
The device supports multiple operating modes depending on the firmware used:
- Zigbee Coordinator mode
- Zigbee Router mode
- Thread Border Router mode
Firmware can be updated quickly with the SMLIGHT Web-Flasher, a one-click online flashing tool: https://smlight.tech/flasher/#Home
Product Highlights
- Texas Instruments CC2652P7 radio: Zigbee 3.0, Thread 1.3, +20 dBm, extended range
- On-board +20 dB radio amplifier
- External +3 dB antenna, rotatable on 3 axes
- Silicon Labs CP2102N USB-to-UART bridge
- 4-layer PCB that isolates the radio from USB and host interference
- USB-A plug, 18 × 54 × 10 mm, 14 g; does not block adjacent ports
- Compatible with Zigbee2MQTT, Home Assistant ZHA, Thread / OpenThread, OpenHAB, HomeSeer, ioBroker
- For PCs, servers, NAS systems, Raspberry Pi and mini-computers
- Operating temperature +5 to +35 °C

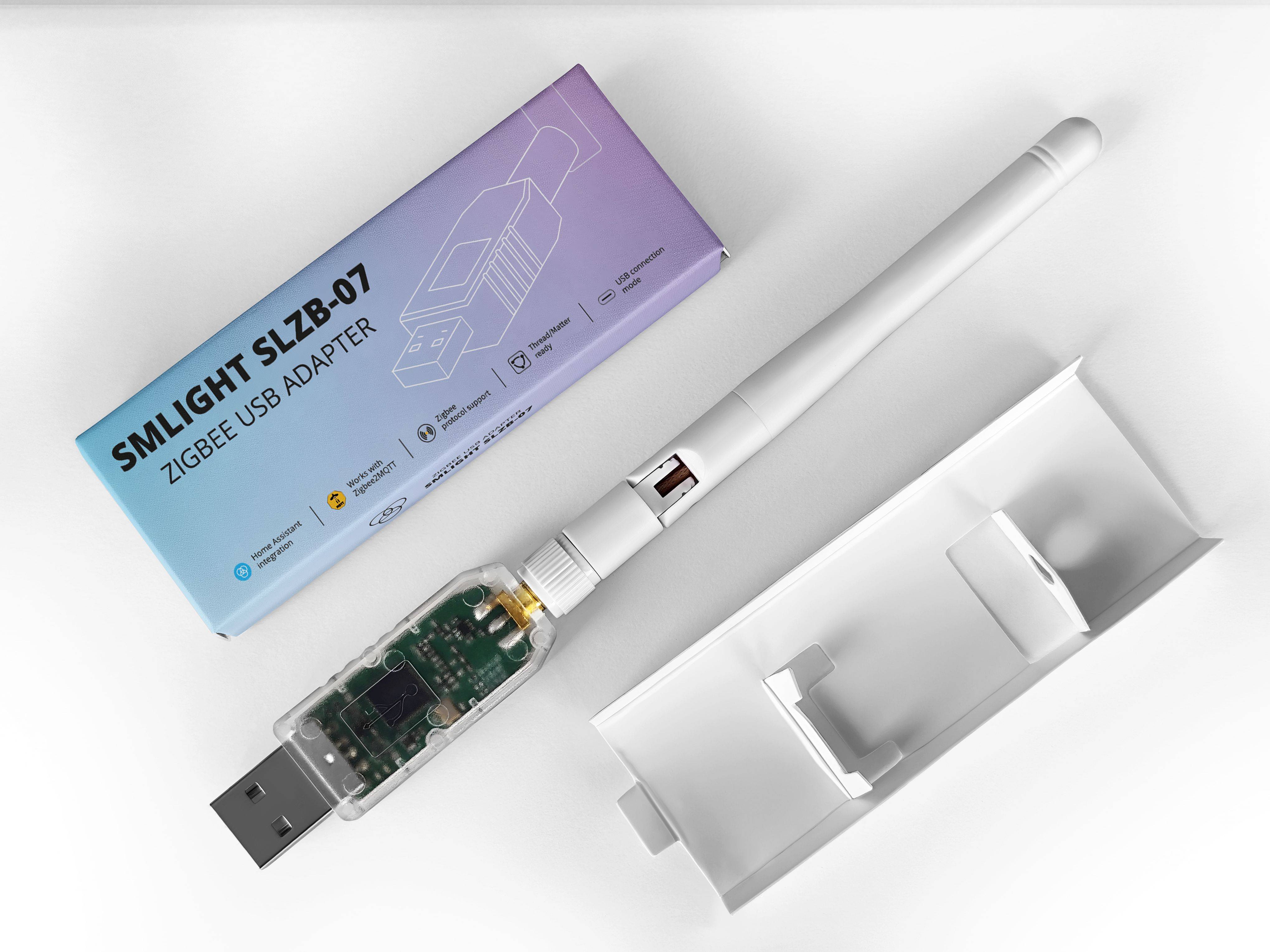

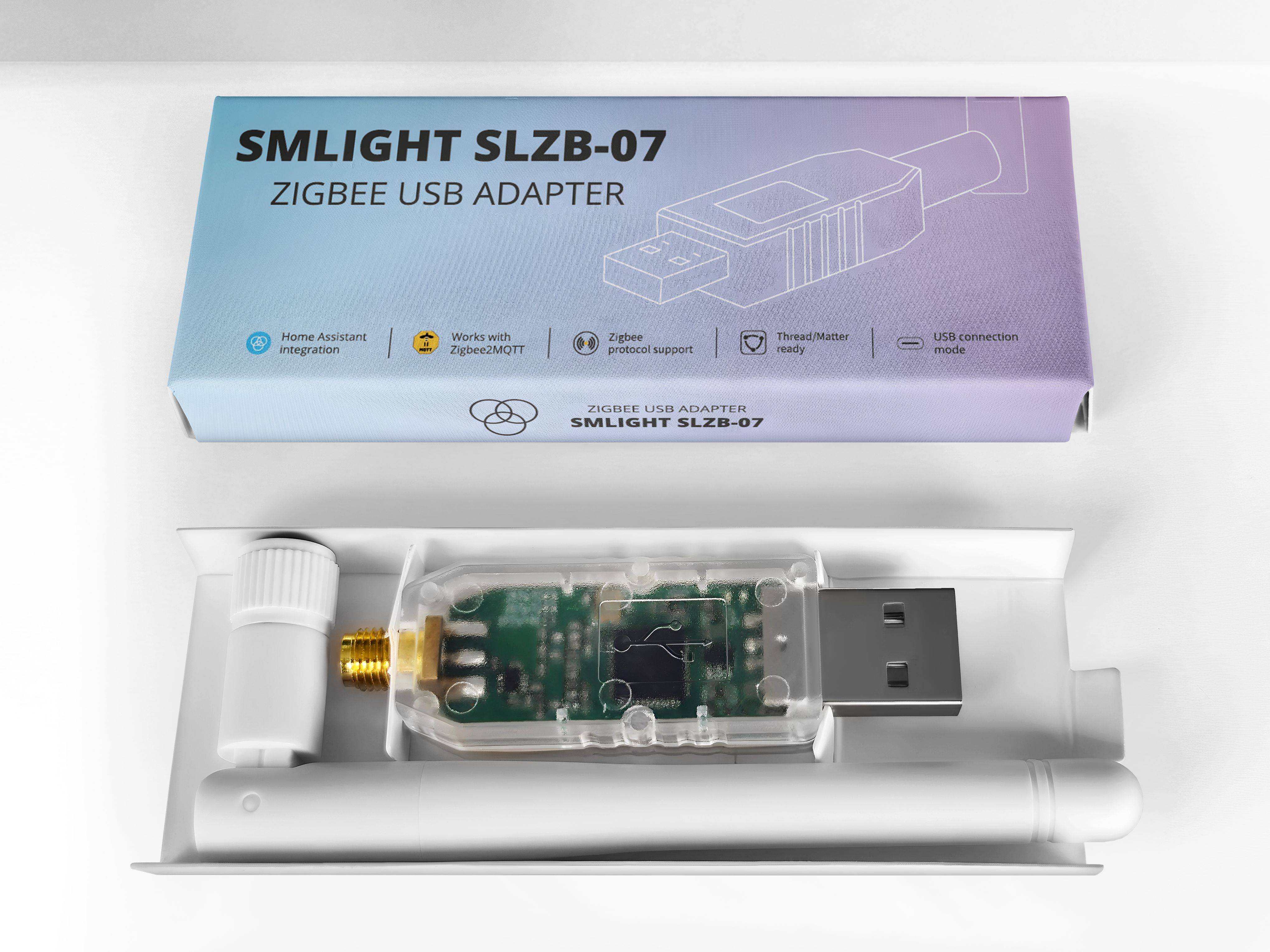

Package Contents
- SLZB-07p7 — 1 pcs
- External antenna, +3 dB, rotatable — 1 pcs
- QR-code manual card — 1 pcs
