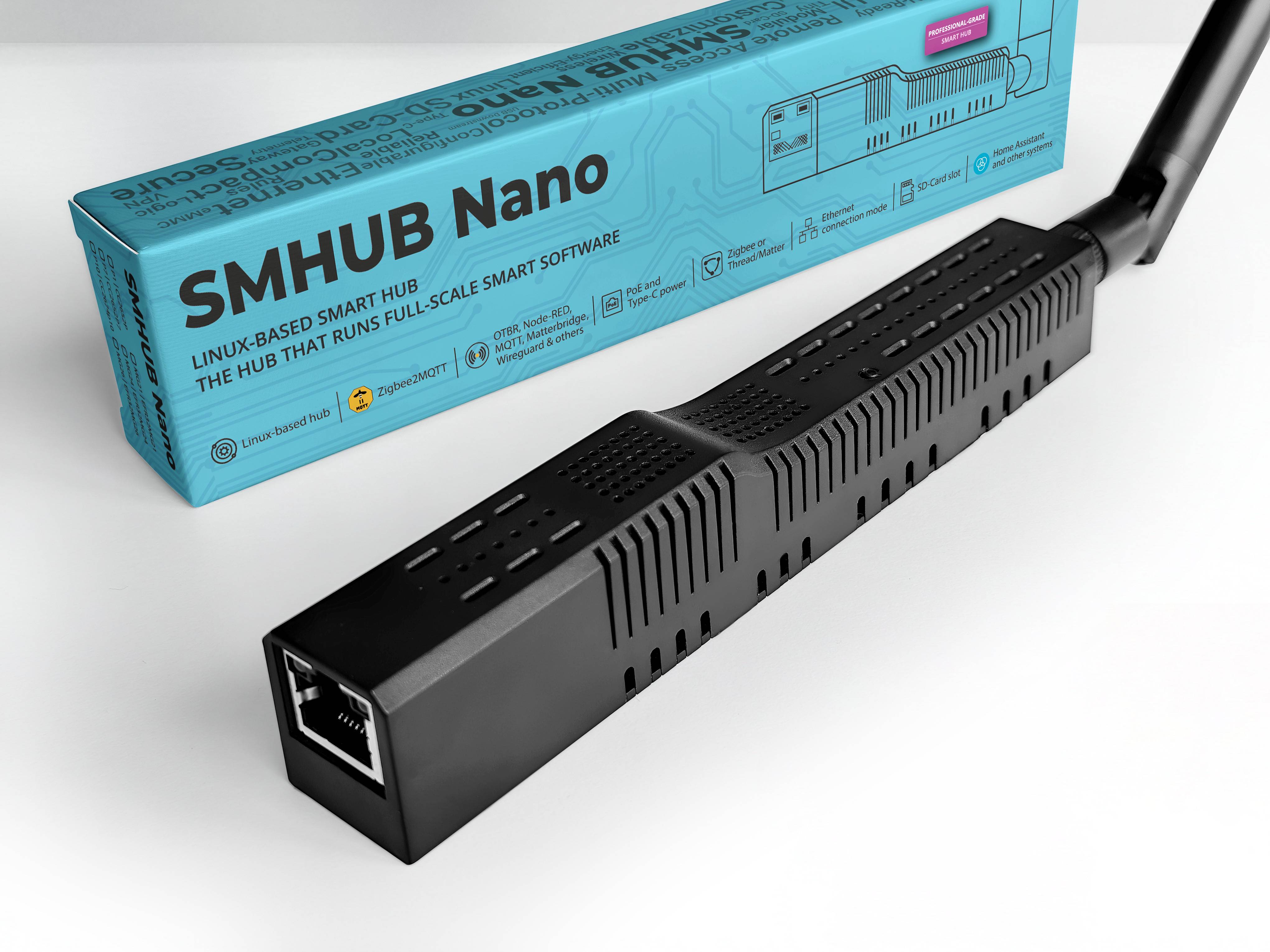

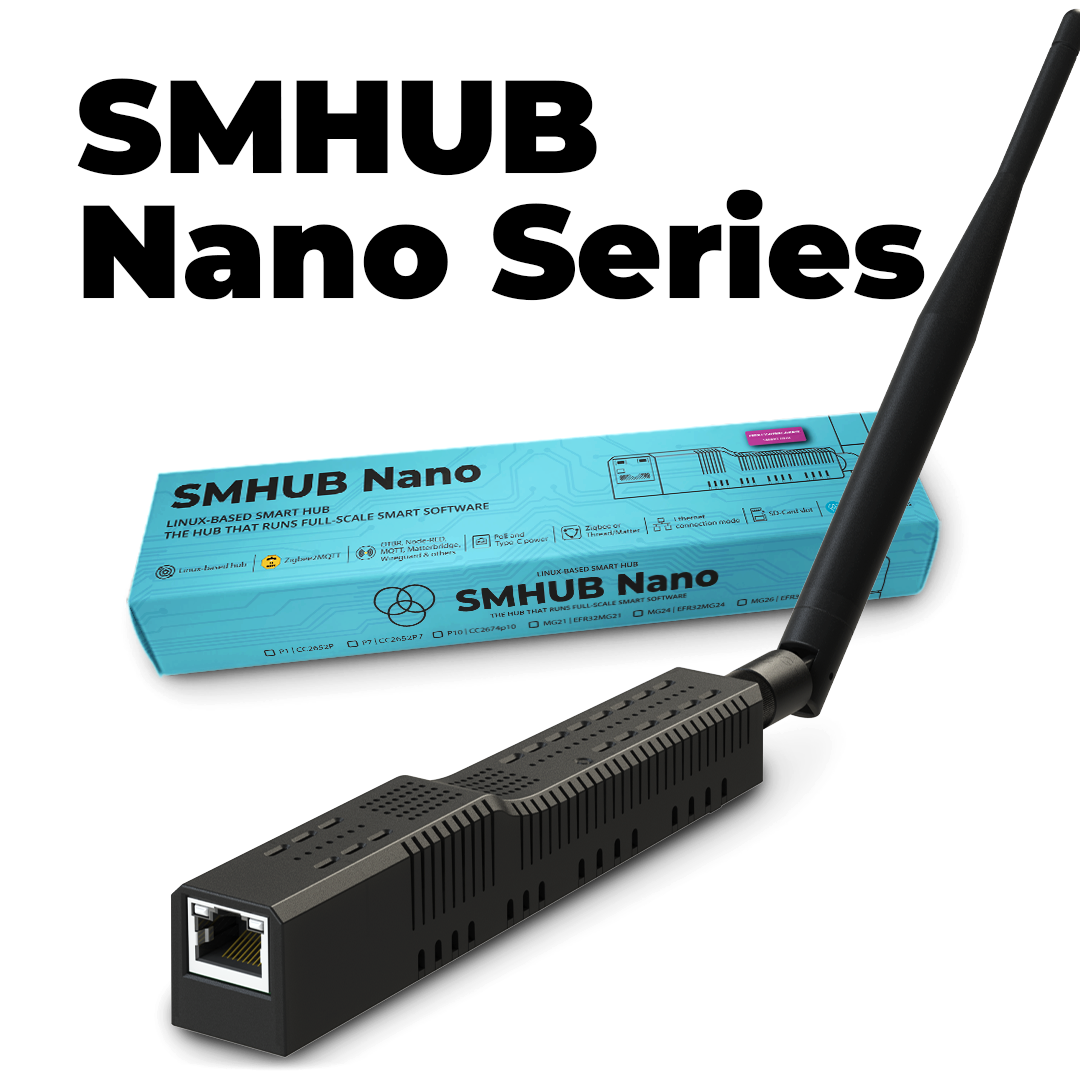

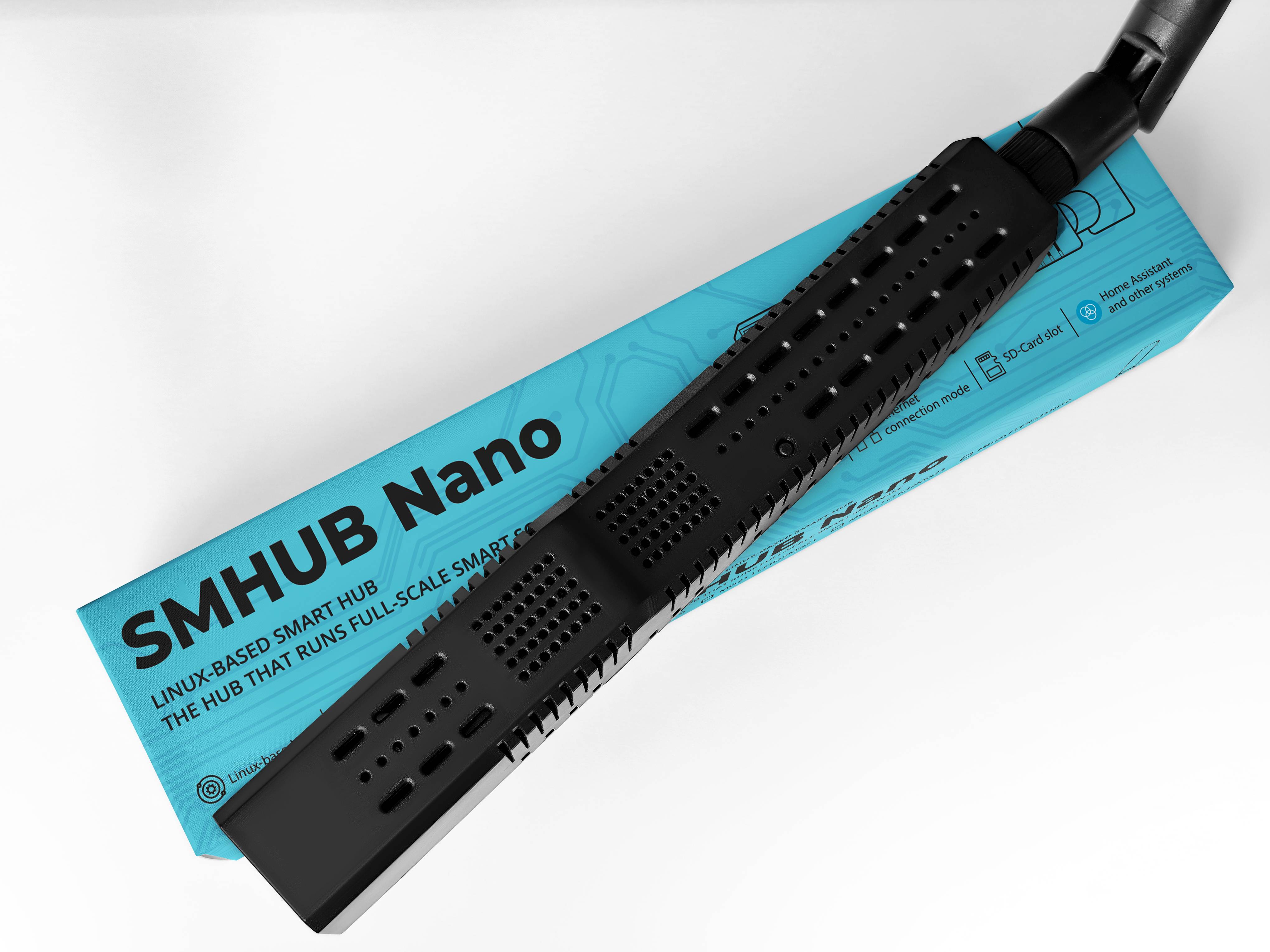

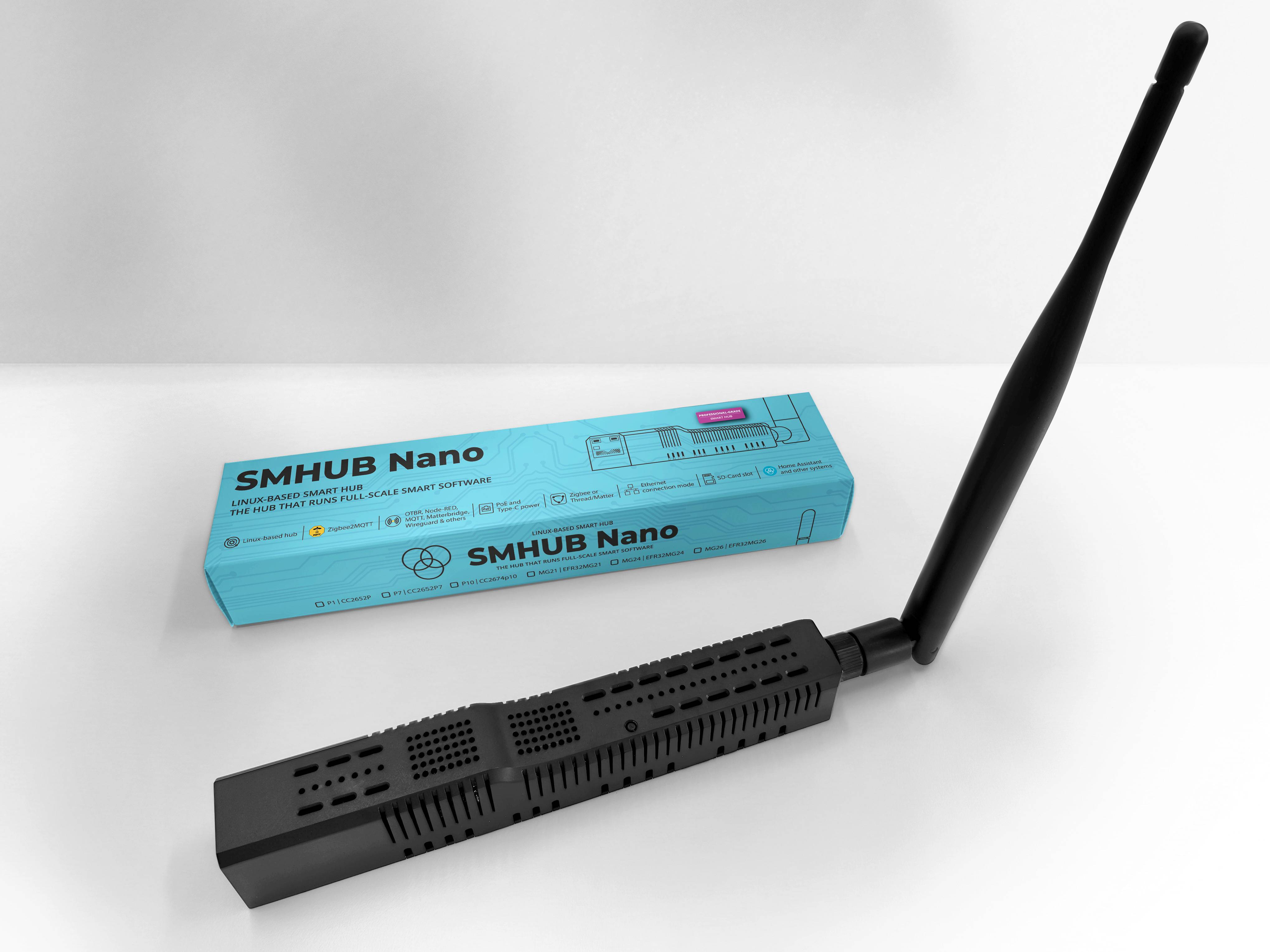

SMHUB NanoMg24

The SMHUB Nano series consists of compact, Linux-based smart hubs designed for fully local automation workloads. Each SMHUB Nano runs SMHUB-OS, enabling advanced applications to run directly on the device itself - no external server, no Raspberry Pi, no cloud required.

With Zigbee2MQTT, Node-RED, MQTT, WireGuard, OpenThread, and other applications running locally, the SMHUB Nano functions as a complete automation controller. Thanks to Matterbridge, the hub can also passthrough Zigbee devices into Google Home and Apple Home, enabling seamless control through modern Matter-capable ecosystems.

This makes SMHUB Nano ideal for integrators, OEM partners, installers, and advanced home users who require a powerful yet compact automation platform.

Product Highlights

• Core Platform: CPU: SG2000 (Dual-core ARM), RAM: 512 MB LPDDR4, Internal Storage: eMMC (8Gb) + microSD slot (up to 2Tb), Operating System: SMHUB-OS (Linux-based)
• Triple-radio architecture: Texas Instruments CC26XXPX or Silicon Labs EFR32MG24 (Zigbee/Thread capable), AICSemi AIC8800 (Wi-Fi, 2.4/5Ghz), AICSemi AIC8800 (Bluetooth)
• USB Host Mode (remote USB over LAN)
• Ethernet connectivity (100 Mbps) for stable and interference-free operation
• PoE support for simplified installations
• Power: USB-C 5 V, PoE via PoE splitter, SMLIGHT UPS support via USB-C
• High output power 5dB external antennas for extended coverage and improved mesh performance

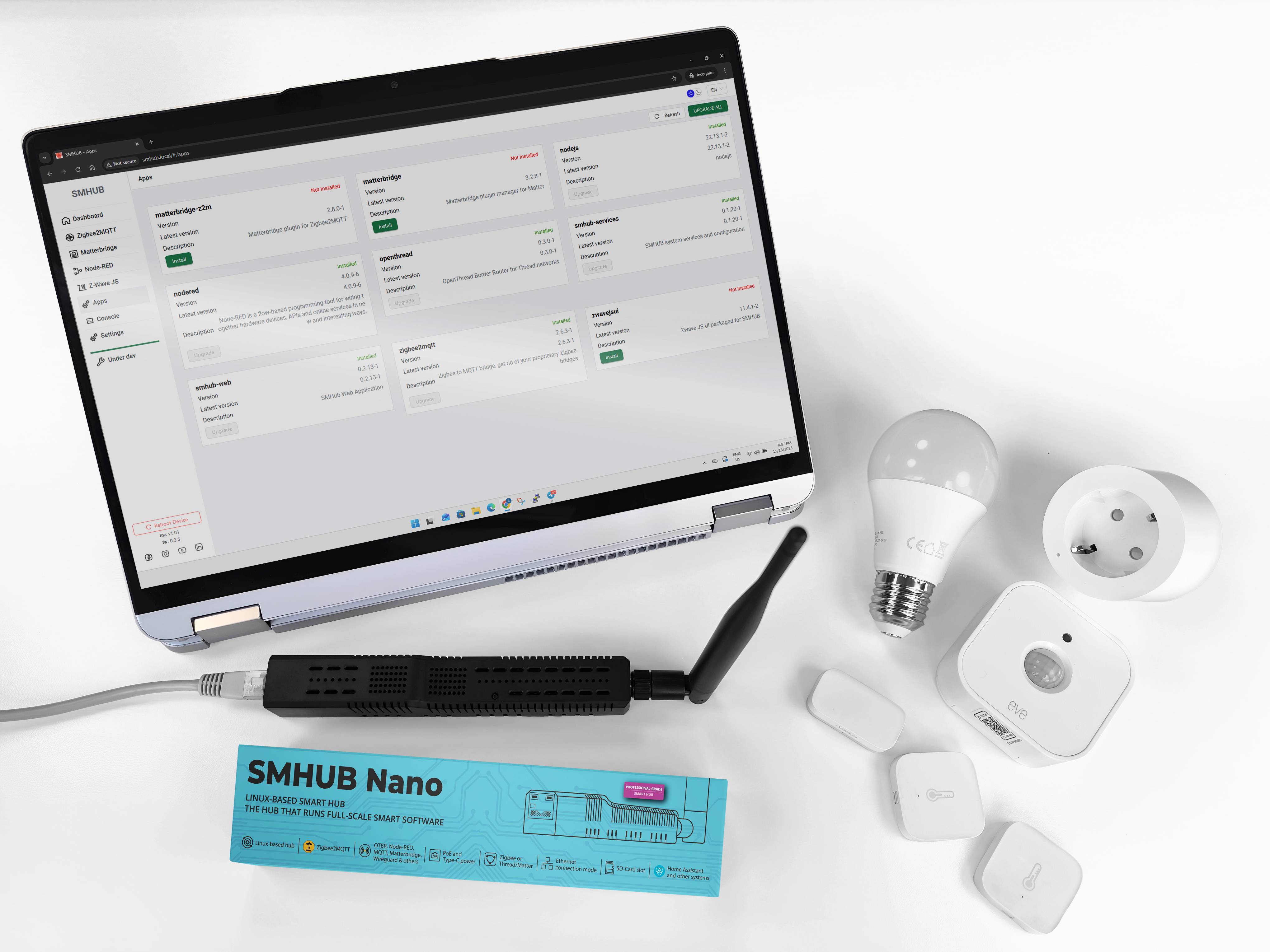

• Linux-Based Smart Hub (SMHUB-OS): All automation software runs on-device, Integrated web dashboard, OTA updates for OS + apps + radio firmware, SSH for developers

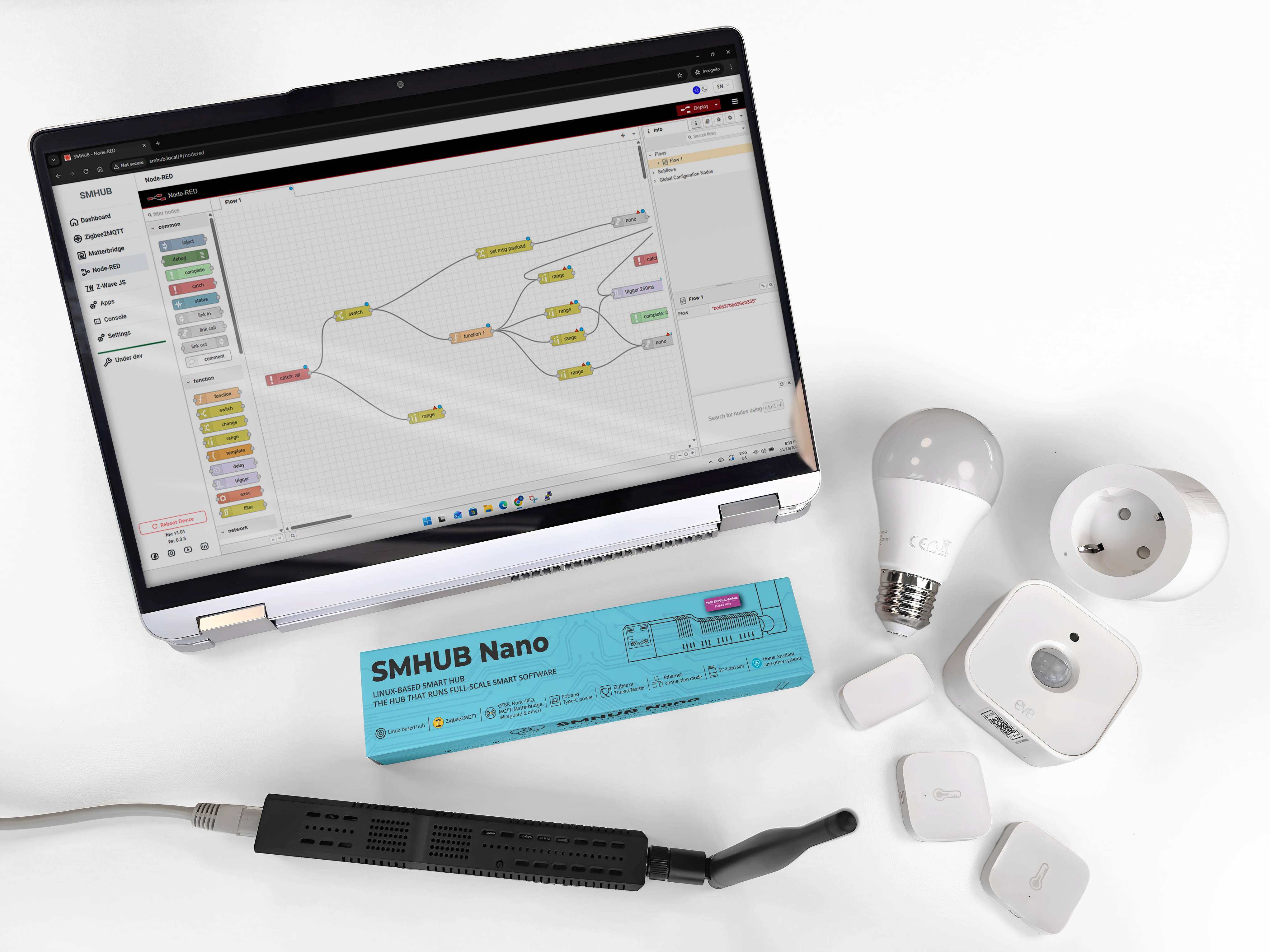

• On-Device Automation Software (preinstalled): Zigbee2MQTT, Matterbridge → passthrough Zigbee devices to Google Home / Apple Home, Node-RED, Mosquitto MQTT Broker, WireGuard VPN, OpenThread tools, NodeJS & Python runtime environments

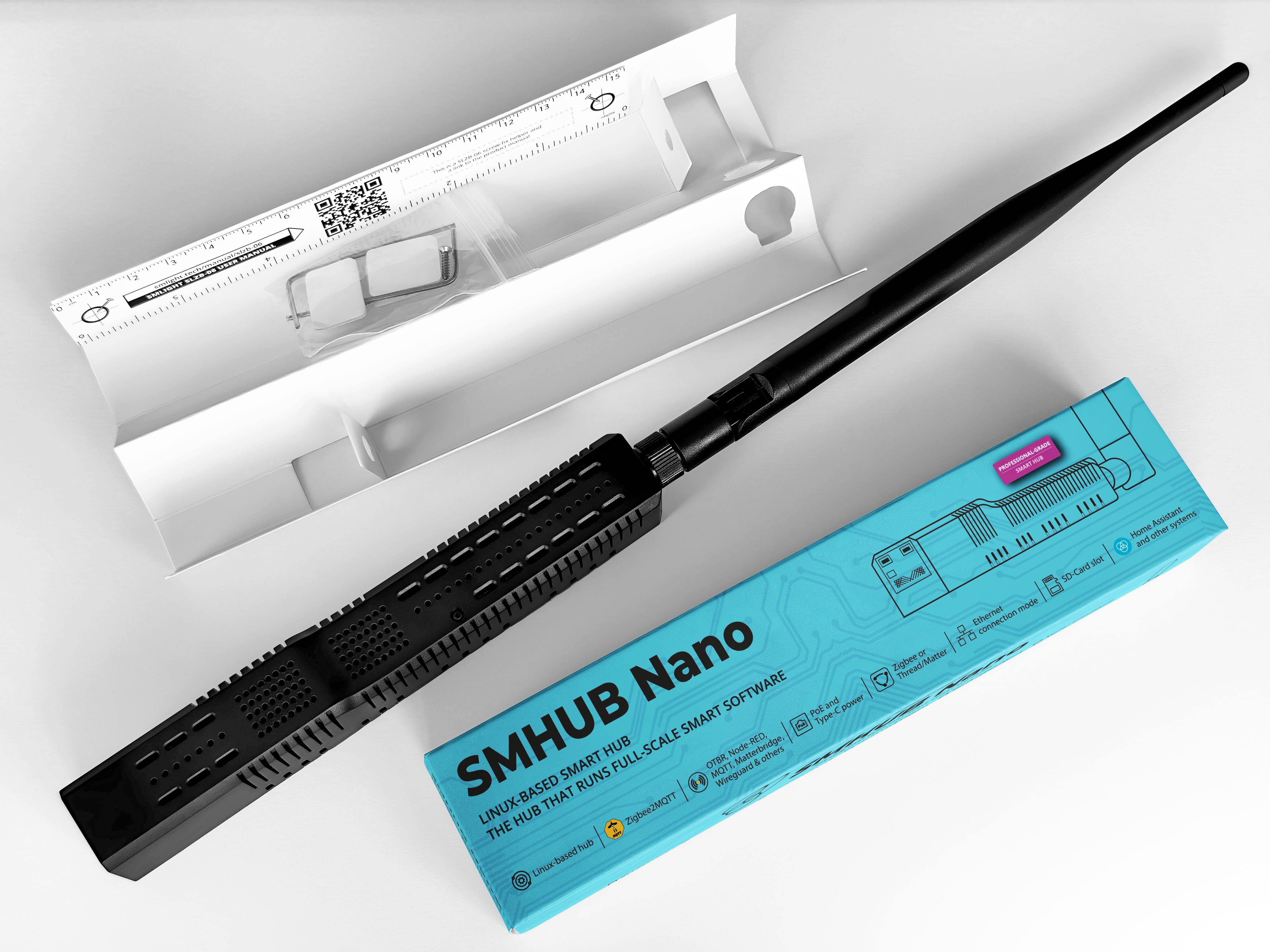

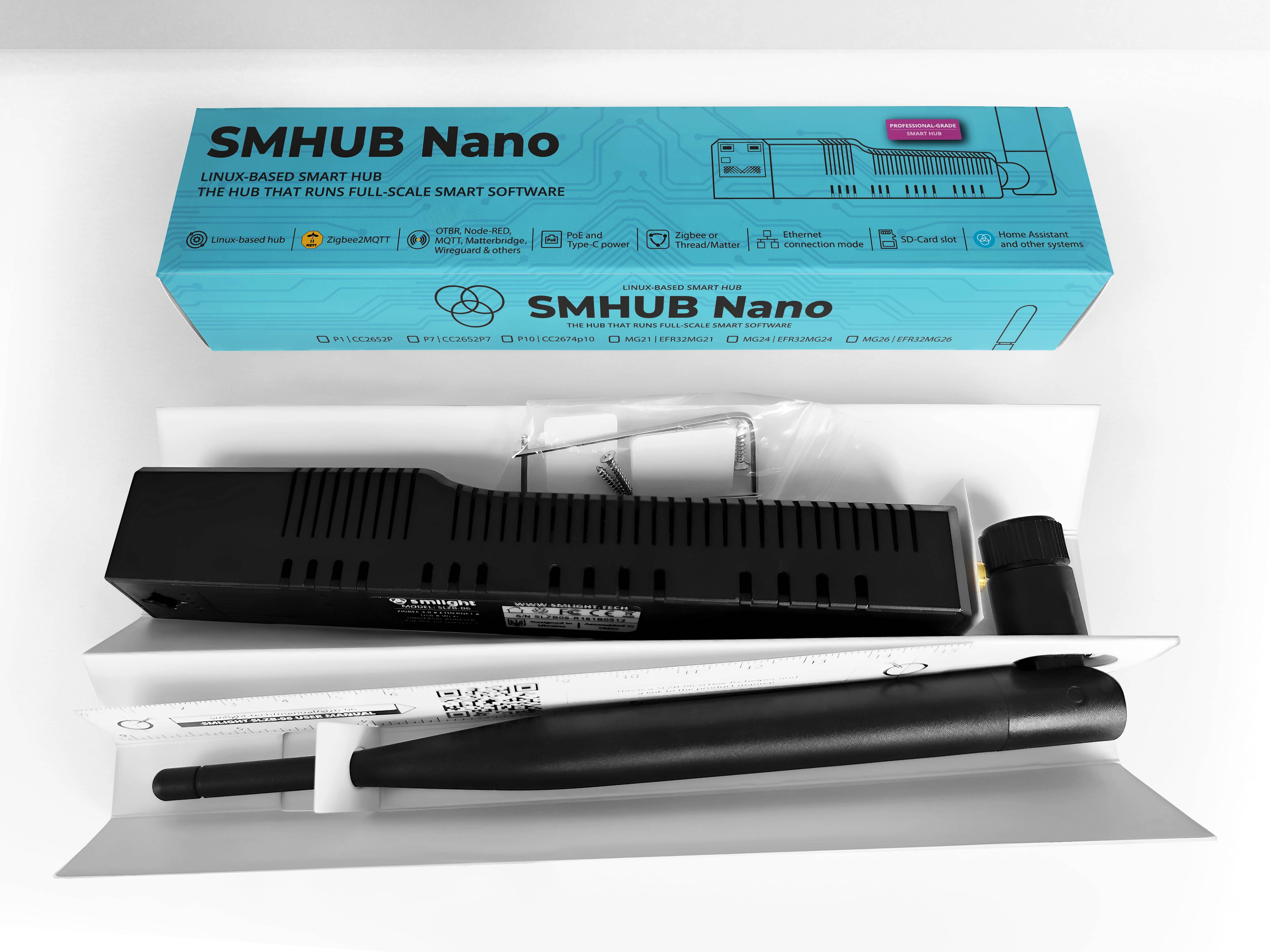

Packing content

• SMHUB Nano - 1 pcs
• External antenna - 1 pcs
• Double-sided adhesive sticks - 2 pcs
• Screws - 2 pcs
• Scredriver - 1 pcs
• QR-link manual + screw helper - 1 pcs
• Paperbox - 1 pcs
