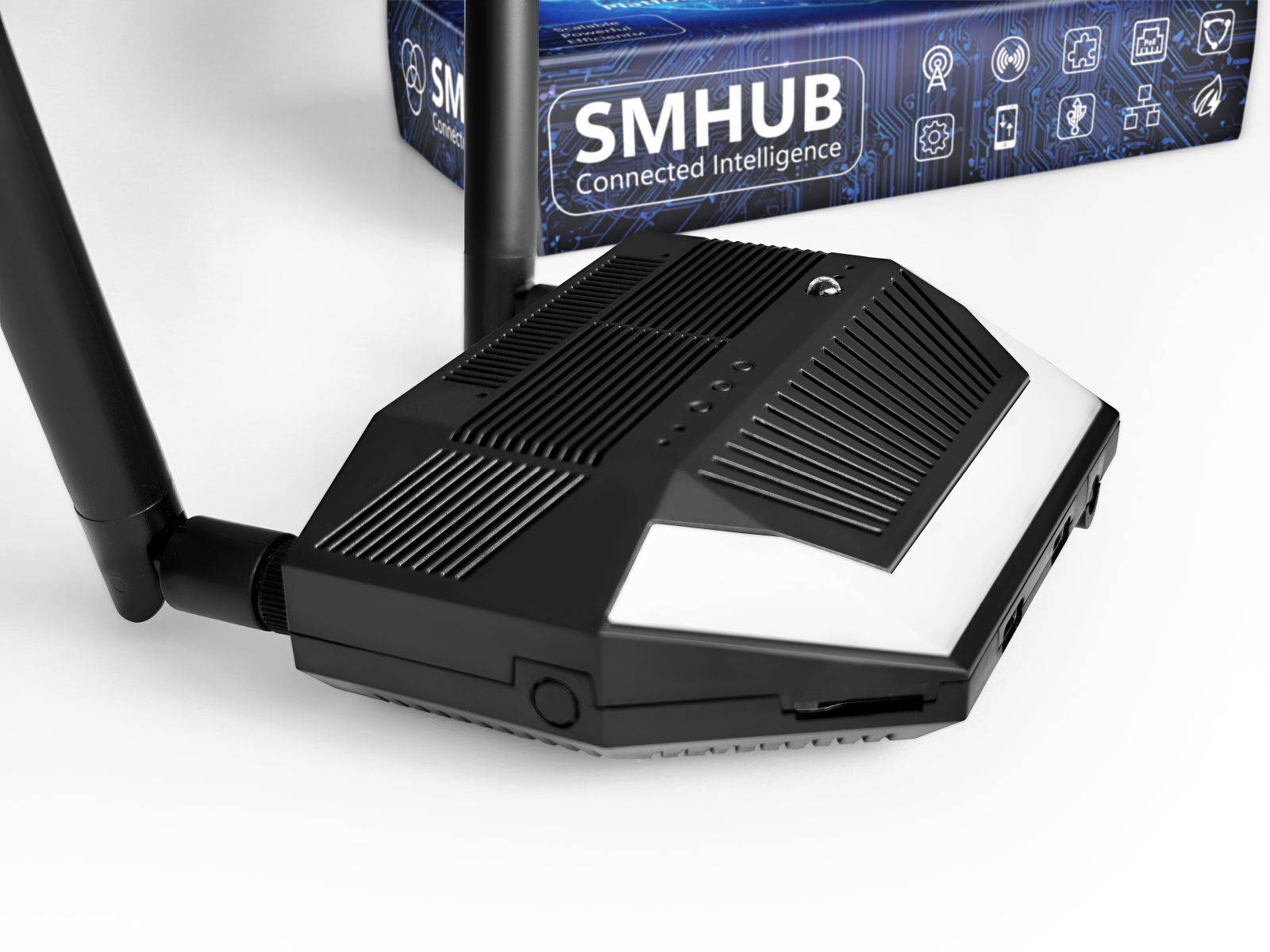

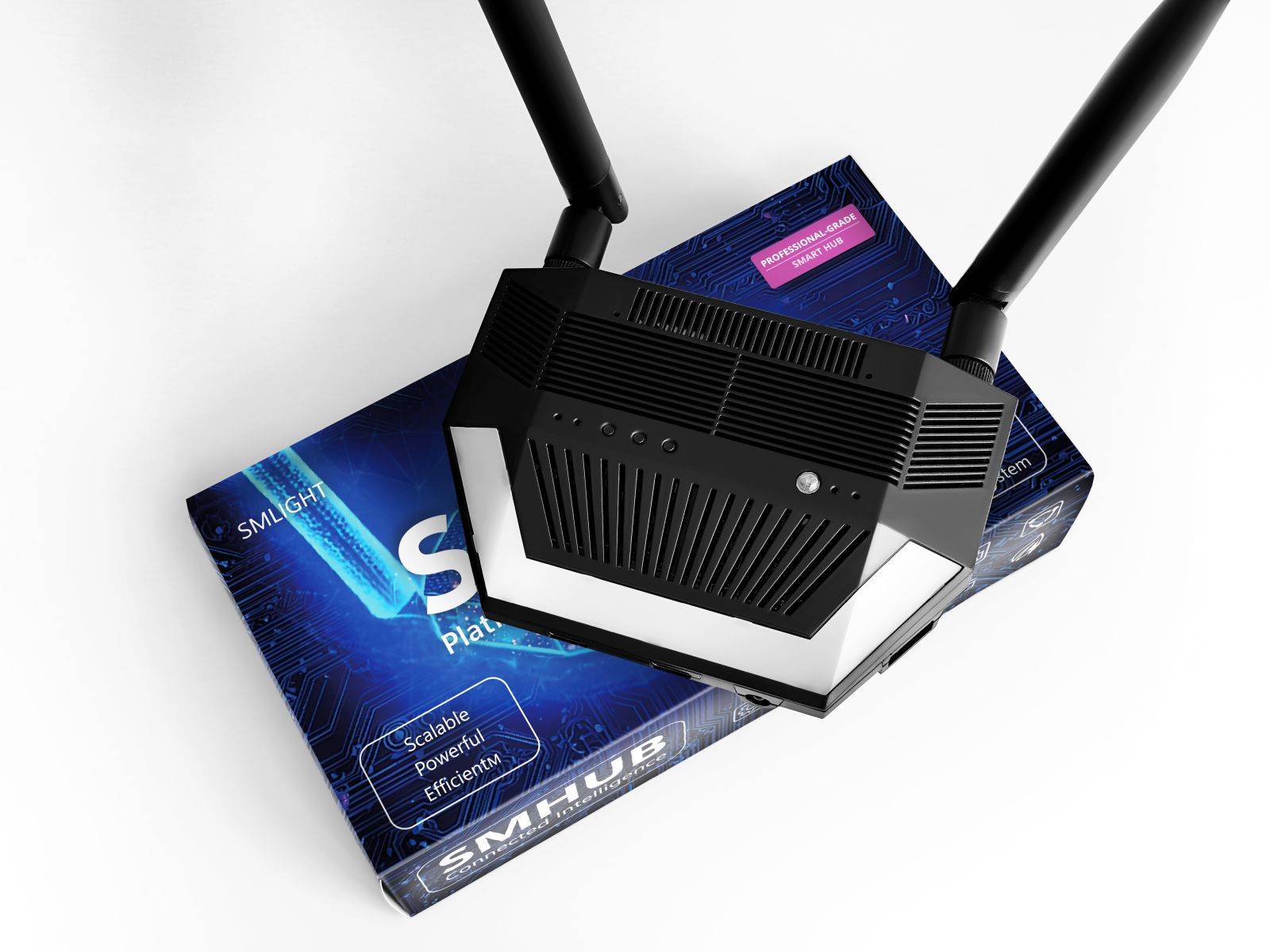

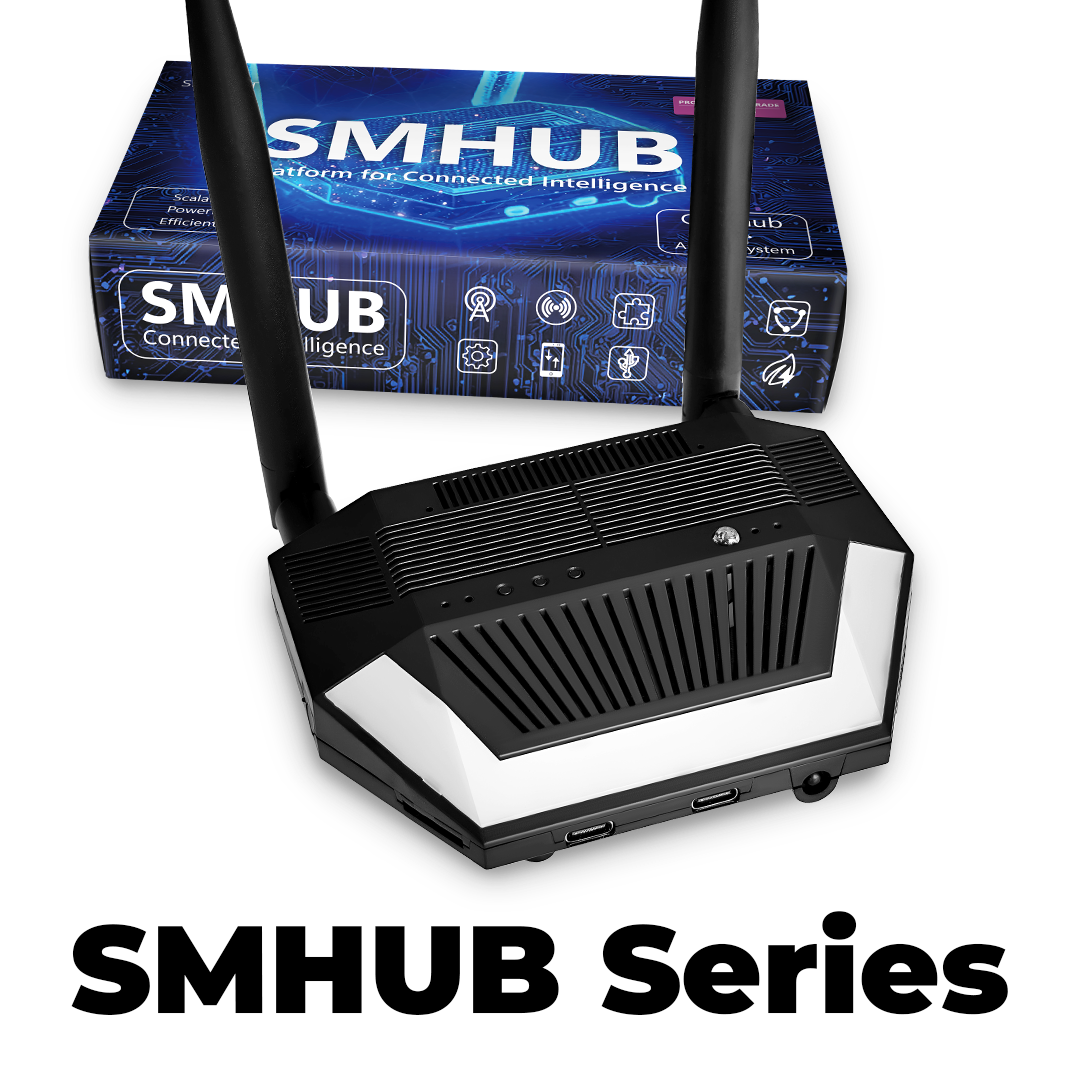

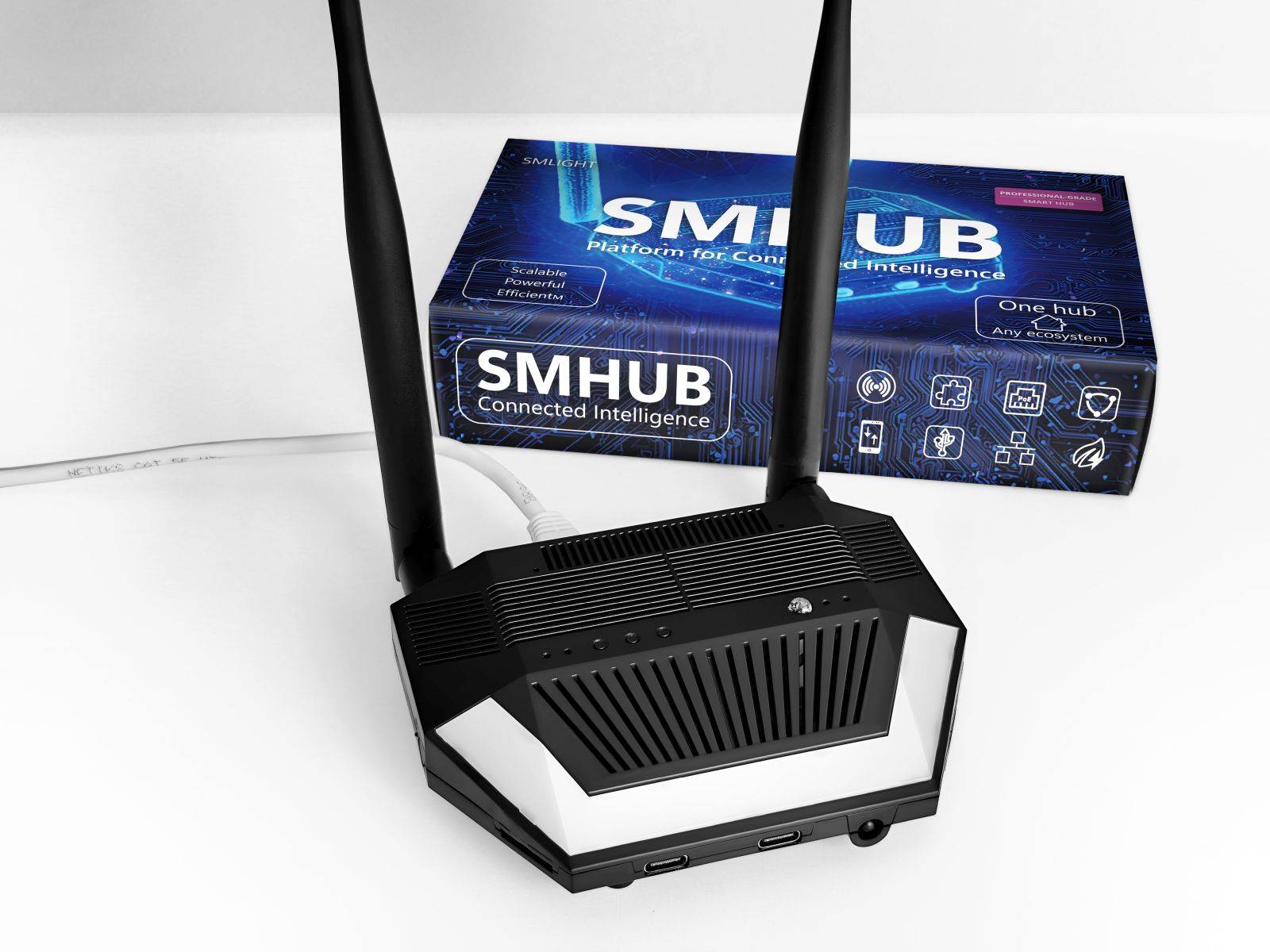

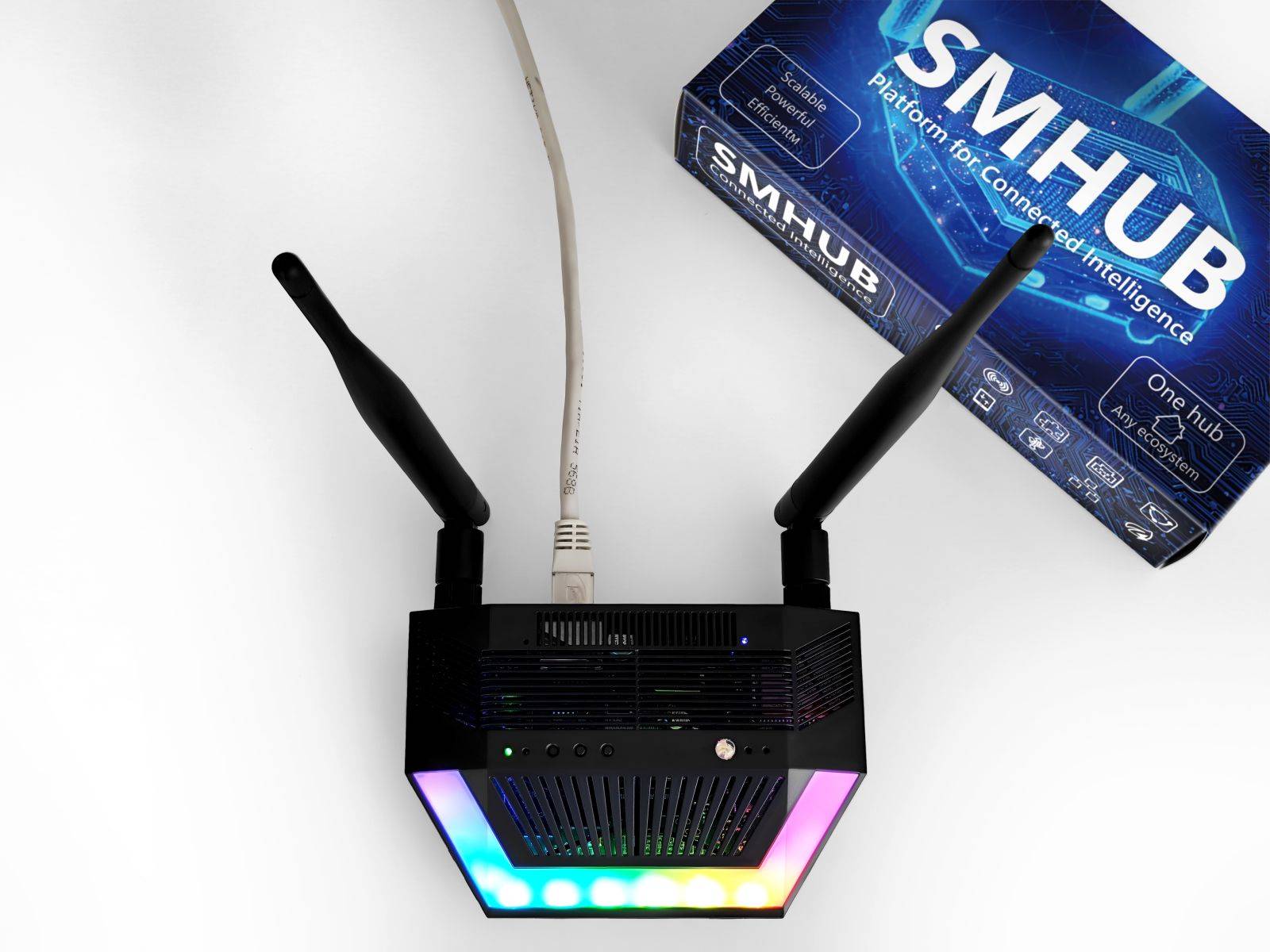

SMHUB Premium - Linux-powered Smart Hubs with Multi-Radio Support, Add-On Expansion & Integrated Peripherals
The SMHUB Premium is SMLIGHT’s flagship Linux-based smart hub, designed for high-performance local automation in both residential and professional environments. Built on SMHUB-OS, these hubs run all automation services directly on the device itself, with no need for an external server, cloud platform, or Raspberry Pi.
With dedicated multi-radio support, strong CPU performance, generous storage, dual-band Wi-Fi, Ethernet, USB ports, and a rich peripheral set, the SMHUB Series provides a complete, reliable, and extensible automation platform for modern smart homes, commercial buildings, installers, and integrators.
With Zigbee2MQTT, Node-RED, MQTT, WireGuard, OpenThread, and other applications running locally, the SMHUB functions as a complete automation controller. Thanks to Matterbridge, the hub can also passthrough Zigbee devices into Google Home and Apple Home, enabling seamless control through modern Matter-capable ecosystems.
This makes SMHUB ideal for integrators, OEM partners, installers, and advanced home users who require a powerful yet compact automation platform.
Product Highlights
- Core Platform : CPU: SG2000 (Dual-core ARM), RAM: 512 MB LPDDR4, Internal Storage: eMMC (8Gb) + microSD slot (up to 2Tb), Operating System: SMHUB-OS (Linux-based)
- Quad-radio architecture: Texas Instruments CC26XXPX (Zigbee/Thread capable), Silicon Labs EFR32MG2X (Zigbee/Thread capable), AICSemi AIC8800 (Wi-Fi, 2.4/5Ghz), AICSemi AIC8800 (Bluetooth)
- USB Host Mode (remote USB over LAN)

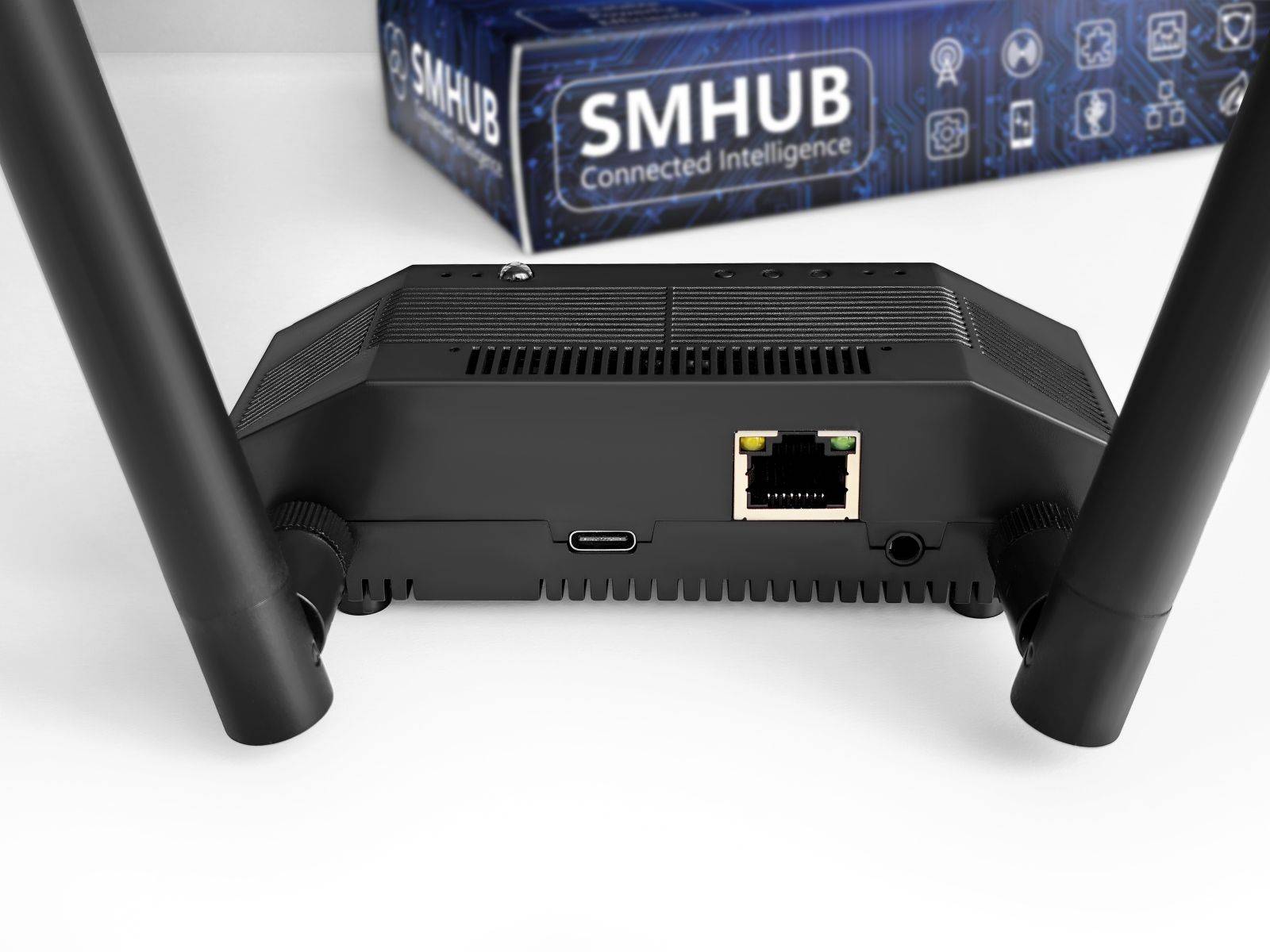

- Ethernet connectivity (100 Mbps) for stable and interference-free operation

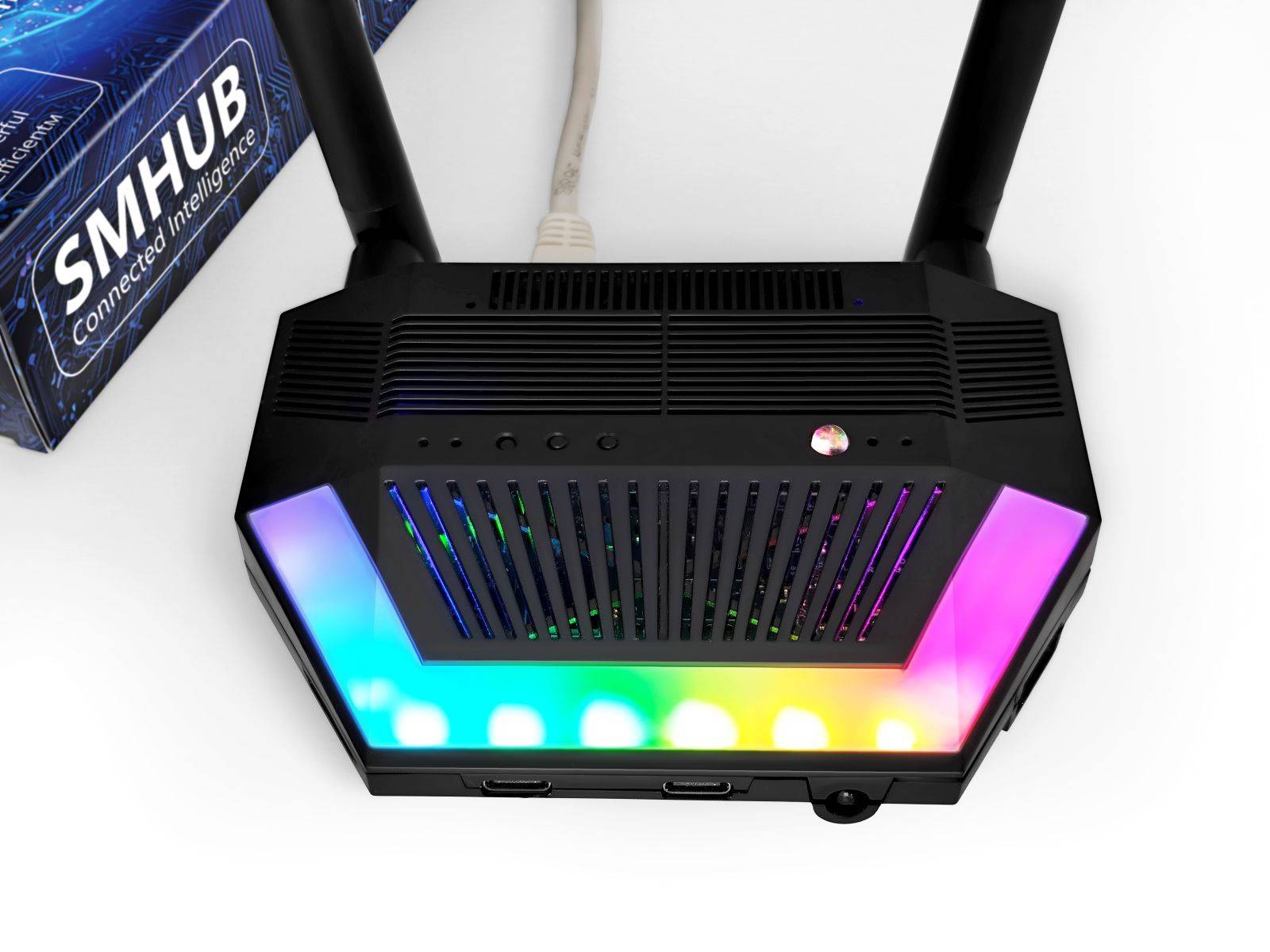

- Integrated Peripherals : 12× WS2812B addressable RGB LEDs, 4× service LEDs, Audio output, IR receiver, IR transmitter, Buzzer, 3× programmable buttons

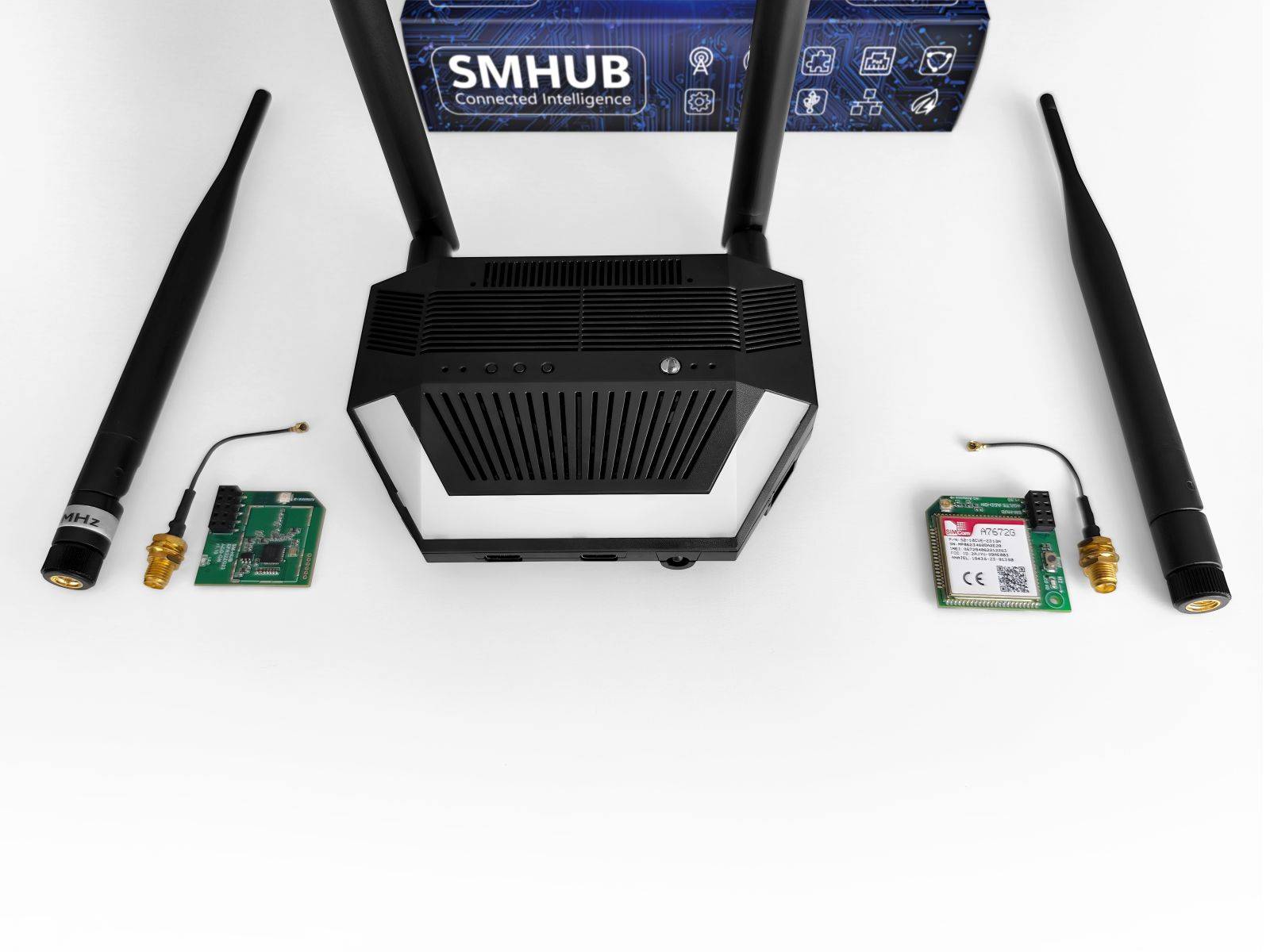

- Expansion ecosystem : PoE Add-on, Z-Wave 800 Add-on, 4G/LTE Add-on, MIC Add-on, UPS Add-on, Custom addons with UART or I2C protocols via 2.54mm connectors
- Power: USB-C 5 V, PoE (with PoE addon), SMLIGHT UPS support via USB-C or dedicated connector
- 2x High output power 5dB external antennas for extended coverage and improved mesh performance. Expandable with additional external antennas for add-ons
- Linux-Based Smart Hub (SMHUB-OS): All automation software runs on-device, Integrated web dashboard, OTA updates for OS + apps + radio firmware, SSH for developers
- On-Device Automation Software (preinstalled): Zigbee2MQTT, Matterbridge → passthrough Zigbee devices to Google Home / Apple Home, Node-RED, Mosquitto MQTT Broker, WireGuard VPN, OpenThread tools, NodeJS & Python runtime environments
Packing content
- SMHUB - 1 pcs
- External antenna - 2 pcs
- QR-link manual + screw helper - 1 pcs
- Paperbox - 1 pcs
